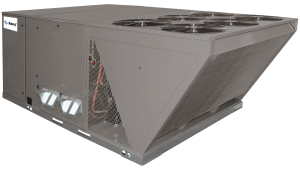

RKNL-C (15-25 Ton)

RKNL-C (15-25 Ton)
Features
  • R-410A HFC refrigerant.
  • Complete factory charged, wired and run tested.
  • Scroll compressors with internal line break overload and high-pressure protection.
  • Single compressor on 6 ton model.
  • Convertible airflow.
  • TXV refrigerant metering system on each circuit.
  • High Pressure and Low Pressure/Loss of charge protection standard on all models.
  • Solid Core liquid line filter drier on each circuit.
  • Single slab, single pass designed evaporator and condenser coils facilitate easy cleaning for maintained high efficiencies.
  • Cooling operation up to 125 degree F ambient.
  • Foil faced insulation encapsulated throughout entire unit minimizes airborne fibers from the air stream.
  • Hinged major access door with heavy-duty gasketing, 1/4 turn latches and door retainers.
  • Slide Out Indoor fan assembly for added service convenience.
  • Powder Paint Finish meets ASTMB117 steel coated on each side for maximum protection. G90 galvanized.
  • One piece base pan with drawn supply and return opening for superior water management.
  • Forkable base rails for easy handling and lifting.
  • Single point electrical and gas connections.
  • Internally sloped slide out condensate pan conforms to ASHRAE 62 standards.
  • High performance belt drive motor with variable pitch pulleys and quick adjust belt system.
  • Permanently lubricated evaporator, condenser and gas heat inducer motors.
  • Condenser motors are internally protected, totally enclosed with shaft down design.
  • 2 inch filter standard with slide out design.
  • Two stage gas valve and direct spark ignition.
  • Tubular heat exchange for long life and induced draft for efficiency and reliability.
  • Solid state furnace control with on board diagnostics.
  • 24 volt control system with resettable circuit breakers.
  • Colored and labeled wiring.
  • Copper tube/Aluminum Fin coils (121/2 ton uses MicroChannel condenser).
  • Molded compressor plug.
  • Factory Installed ClearControl™, a Direct Digital Control (DDC) and sensors which can connect to LonWorks™ or BACnet® BAS systems for remote monitoring and control.
  • -H models with supply fan Variable Frequency Drive (VFD) meets ASHRAE 90.1-2010 and California Title 24.
Specs
  • 3 phase DDC Models with Scroll® Compressor
  • ClearControl™
  • Nominal Size: 15-25 ton
Documents

Warranty

Compressor Warranty - 5 Years (commercial applications)

Stainless Steel Heat Exchanger - 20 years (commercial applications)

Parts Warranty - 1 Year (commercial applications)
