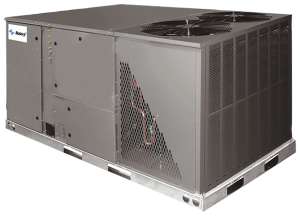

RLNL-C/H (15-25 Ton)
--eaee01c5-3678-4c0d-958d-ebba39a135e1-300x300.png)
Features
- R-410A HFC refrigerant.
- Complete factory charged, wired and run tested.
- Scroll compressors with internal line break overload and high-pressure protection.
- Single compressor on 6 Ton model.
- Two compressors on 7.5 - 12.5 Ton model.
- Convertible airflow.
- TXV refrigerant metering system on each circuit (except on 6 Ton).
- High Pressure and Low Pressure/Loss of charge protection standard on all models.
- Solid Core liquid line filter drier on each circuit.
- Single slab, single pass designed evaporator and condenser coils facilitate easy cleaning for maintained high efficiencies.
- Cooling operation up to 125 degree F ambient.
- Foil faced insulation encapsulated throughout entire unit minimizes airborne fibers from the air stream.
- Hinged major access door with heavy-duty gasketing, 1/4 turn latches and door retainers.
- Slide Out Indoor fan assembly for added service convenience.
- Powder Paint Finish meets ASTMB117 steel coated on each side for maximum protection. G90 galvanized.
- One piece base pan with drawn supply and return opening for superior water management.
- Forkable base rails for easy handling and lifting.
- Single point electrical connections.
- Internally sloped slide out condensate pan conforms to ASHRAE 62 standards.
- High performance belt drive motor with variable pitch pulleys and quick adjust belt system.
- Permanently lubricated evaporator and condenser motors.
- Condenser motors are internally protected, totally enclosed with shaft down design.
- 2 inch filter standard with slide out design.
- 24 volt control system with resettable circuit breakers.
- Colored and labeled wiring.
- Copper tube/Aluminum Fin coils (121/2 ton uses MicroChannel condenser).
- Molded compressor plug.
- Supplemental electric heat provides 100% efficient heating.
- Factory Installed Direct Digital Control (DDC) and sensors which can connect to LonWorks™ or BACnet® BAS systems for remote monitoring and control.
- -H Models with Variable Frequency Drives (VFD) meets ASHRAE 90.1-2010 and California Title 24.
Specs
- 3 phase DDC models with Scroll® Compressor
- ClearControl™
- Nominal Size: 15-25 ton
- RLNL-H includes VFD Technology
RLNL-C/H (15-25 Ton)
Warranty
Parts - 1 Year (commercial application)
Compressor - 5 Years (commercial application)
