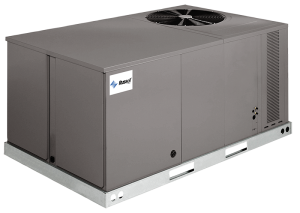

RLQN (3, 4, 5 Ton)

RLQN (3, 4, 5 Ton)
Features
  • R-410A HFC refrigerant.
  • Complete factory charged, wired and run tested.
  • Scroll compressors with internal line break overload and high-pressure protection.
  • Single stage compressor on all models. (Except 5 ton 15 SEER) which utilizes two stage scroll.
  • Convertible airflow.
  • TXV refrigerant metering system on each circuit.
  • High Pressure and Low Pressure/Loss of charge protection standard on all models.
  • Solid Core liquid line filter drier on each circuit.
  • Single slab, Micro Channel designed evaporator coil facilitates easy cleaning for maintained high efficiencies.
  • Cooling operation up to 125 degree F ambient.
  • Easily removable filter, blower, gas heat, and compressor/control access panels permits prompt service.
  • Powder Paint Finish meets ASTMB117 steel coated on each side for maximum protection. G90 galvanized.
  • One piece top cover and one piece base pan with drawn supply and return opening for superior water management.
  • Externally mounted refrigerant gauge ports for easy service diagnostics.
  • Factory or field-installed electric heat kits available up to 24 kW.
  • Easy to install plug-in; slip in, 100% fully modulating economizer.
  • Forkable base rails for easy handling and lifting.
  • Single point electrical and gas connections.
  • Direct drive or high performance belt drive motor with variable pitch pulleys and quick adjust belt system.
  • Permanently lubricated evaporator, condenser and gas heat inducer motors.
  • Condenser motors are internally protected, totally enclosed with shaft down design.
  • 1 inch filter standard with slide out design.
  • Colored and labeled wiring.
  • Copper tube/Aluminum Fin coils.
  • Molded compressor plug.
  • Micro Channel evaporator and condenser delivers superior performance with less refrigerant charge and less weight than conventional copper tube/aluminum fin coils. In addition the all aluminum construction has superior protection against formicary corrosion and aluminum tube rubbing potential. Its easier to clean and has a more robust surface.
Specs
  • Efficiencies up to 15 SEER
  • Scroll® Compressor
  • A - Electro Mech Models
  • C - 3 Phase DDC Models
  • Nominal Size: 3 - 5 ton
Documents

RLQN (3, 4, 5 Ton)

Warranty

Compressor - 10 Years (1 & 3 Phase, residential applications)

Parts - 1 year (1 & 3 Phase, commercial applications)
