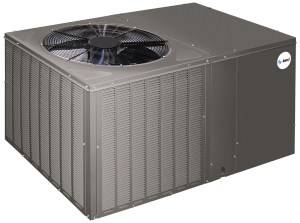

RQRM

RQRM
Features The Scroll® Compressor

All of our residential package units, regardless of efficiency level, feature the Scroll Compressor. These scroll compressors use a more advanced technology than traditional reciprocating compressors. The compressor is hermetically sealed and incorporates internal high temperature motor overload protection and durable insulation on the motor windings. The RQRM- A060 uses a two stage scroll compressor. It is externally mounted on rubber grommets to reduce vibration and noise. They have fewer moving parts, and they are quieter, more efficient, and longer lasting, and quiet operation.

Durable Cabinet with Louvered Condenser Compartment
Our louvered condenser compartment is the best in the industry for protecting the condenser coil against yard hazards and weather extremes. There is a One-piece top with a drip lip to help keep water off of the unit sides. Supply and return air openings feature a one-inch tall flange to prevent water migration into the ductwork. Access panels have “weep holes” and channels to further help manage water run-off. Side and down discharge options available on all models. (Shipped Downflow Standard). Easily accessible blower section complete with slide-out blower. Refrigerant connections are conveniently located for easy service diagnostics. Low pressure/loss of charge protection is standard on all models.

Grille/Fan Motor Mount
Our mount helps protect the fan motor from the elements for longer life. Its design dependability helps reduce vibration and noise.

Easily Accessible Control Box
Operational controls are “up front” for quick installation and easy service diagnostics.

Matched Blower/Evaporator Coil Unit
The blower is responsible for the flow of air into your duct work. It has been designed to match the MultiFlex® evaporator coil and other system components for maximum efficiency and quiet operation. In addition, the coil features rifled copper tubing and enhanced fins for improved efficiency.

Service Fittings
Exterior service fittings enable a serviceman to quickly determine unit operating conditions.

Supplemental Electric Heating Strips
Supplemental electric heat strips up to 20 kW are available (field or factory installed) for periods of extreme cold temperatures. Single point wiring simplifies installation.

Other Benefits
  • Package heat pump utilizes demand defrost control which monitors the outdoor ambient temperature, outdoor coil temperature, and compressor run-time to determine when a defrost cycle is required.
  • Rugged base rails included for improved installation and handling.
  • Low pressure control standard on all models.
  • High pressure control standard on all 5 ton models.
Specs
  • Efficiencies up to 16 SEER/13 EER/8.5 HSPF
  • 1 & 3 Phase Models
  • X-13 Motor
  • Scroll® Compressor
  • Nominal Size: 2 - 5 ton
Documents

RQRM

Warranty

Conditional Parts - 10 Years (1-phase, residential applications)

Compressor - 10 Years (1-phase, residential applications)

Russell By Rheem Warranty

Protect your product with a dependable warranty from Russell By Rheem.

Frequently Asked Questions

Quickly and easily find answers on common topics, including locating a serial number, purchasing a Russell By Rheem warranty, home load calculations and more.
