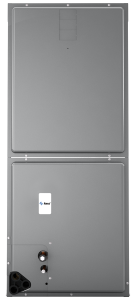

SH1P

SH1P
Features
  • Versatile 4-way convertible design for upflow, downflow, horizontal left and horizontal right applications.
  • Factory-installed indoor coil.
  • Sturdy cabinet construction with 1.0 inch [25.4 mm] of foil faced insulation for excellent sound and insulating characteristics.
  • Field-installed auxiliary electric heater kits provide exact heat for indoor comfort. Kits include circuit breakers which meet U.L. and cUL requirements for service disconnect.
  • 11/2 ton [5.3 kW] through 5 ton [17.6 kW] models are between 421/2 to 551/2 inches [1080 to 1410 mm] tall and 22 inches [559 mm] deep.
  • All models meet or exceed 330 to 400 CFM [156 to 189 L/s] per ton at .3 inches [.7 kPa] of external static pressure.
  • Enhanced airflow up to .7" external static pressure.
  • Evaporator is constructed of aluminum fins bonded to internally grooved aluminum tubing.
Specs
  • Efficiencies up to 15 SEER
  • PSC Motor
  • Standard Efficiency
  • Aluminum Coil
  • Thermostatic Expansion Valve (TXV)
Documents

SH1P/SH1Q

Warranty Conditional Parts - 10 Years (Registration Required)
