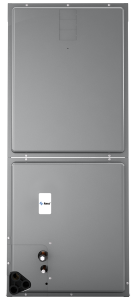

Two-Stage ECM Motor (SH2T)

Two-Stage ECM Motor (SH2T)
Features
  • Feature an Electronic Expansion Valve (EEV)
  • The SH2T features a Constant Torque Two-stage motor (ECM) which provides enhanced SEER performance with most Rheem outdoor units.
  • Evaporator is constructed of aluminum fins bonded to internally grooved aluminum tubing.
  • Versatile 4-way convertible design for upflow, downflow, horizontal left and horizontal right applications.
  • Factory-installed indoor coil.
  • Sturdy cabinet construction with 1.0 inch [25.4 mm] of foil faced insulation for excellent sound and insulating characteristics.
  • Field-installed auxiliary electric heater kits provide exact heat for indoor comfort. Kits include circuit breakers which meet U.L. and cUL requirements for service disconnect.
  • 1½ ton [5.3 kW] through 5 ton [17.6 kW] models are between 42½ to 57 inches [1080 to 1448 mm] tall and 22 inches [559 mm] deep.
  • All models meet or exceed 330 to 400 CFM [156 to 189 L/s] per ton at .3 inches [.7 kPa] of external static pressure.
  • Enhanced airflow up to .7" external static pressure.
  • Suitable for application in mobile homes.
Specs
  • Efficiencies up to 20 SEER
  • Constant torque two-stage airflow
  • All aluminium indoor coil
  • Electronic Expansion Valve (TXV)
AHRI Heat PumpC UL  US ListedAHRI Unitary Small AC Documents

SH2T

Warranty Conditional Parts - 10 Years (Registration Required)
